HM19

Description

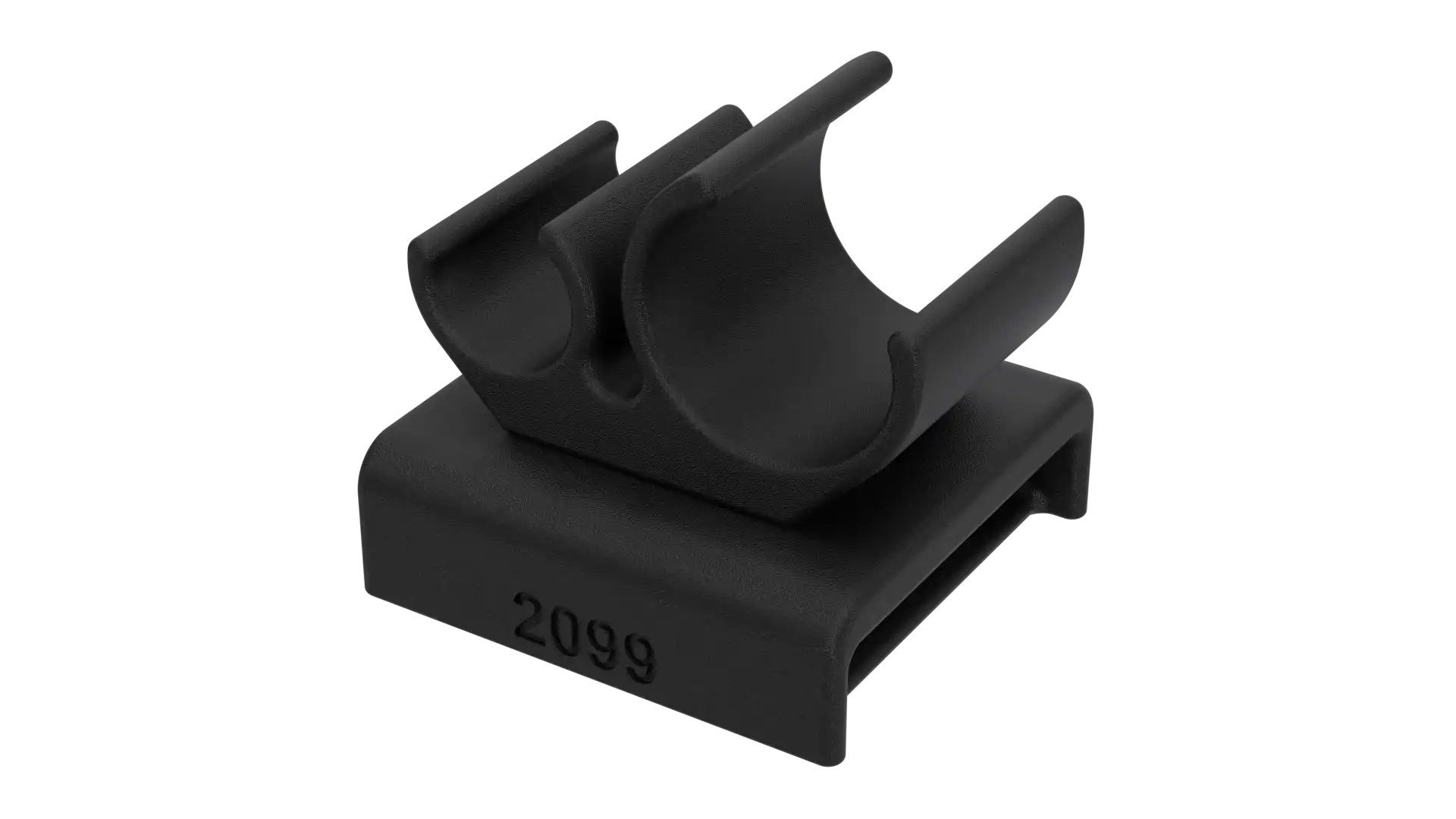

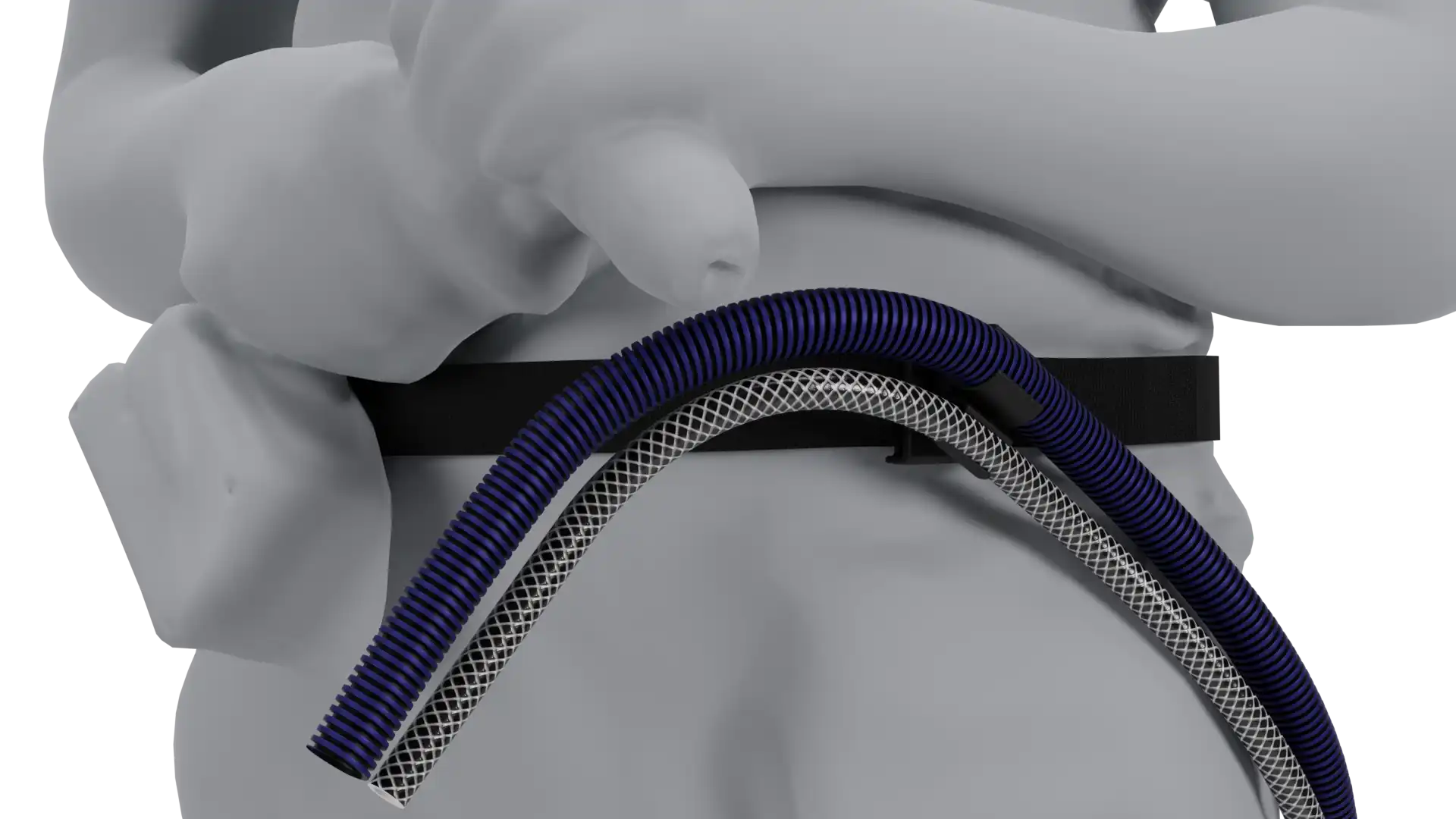

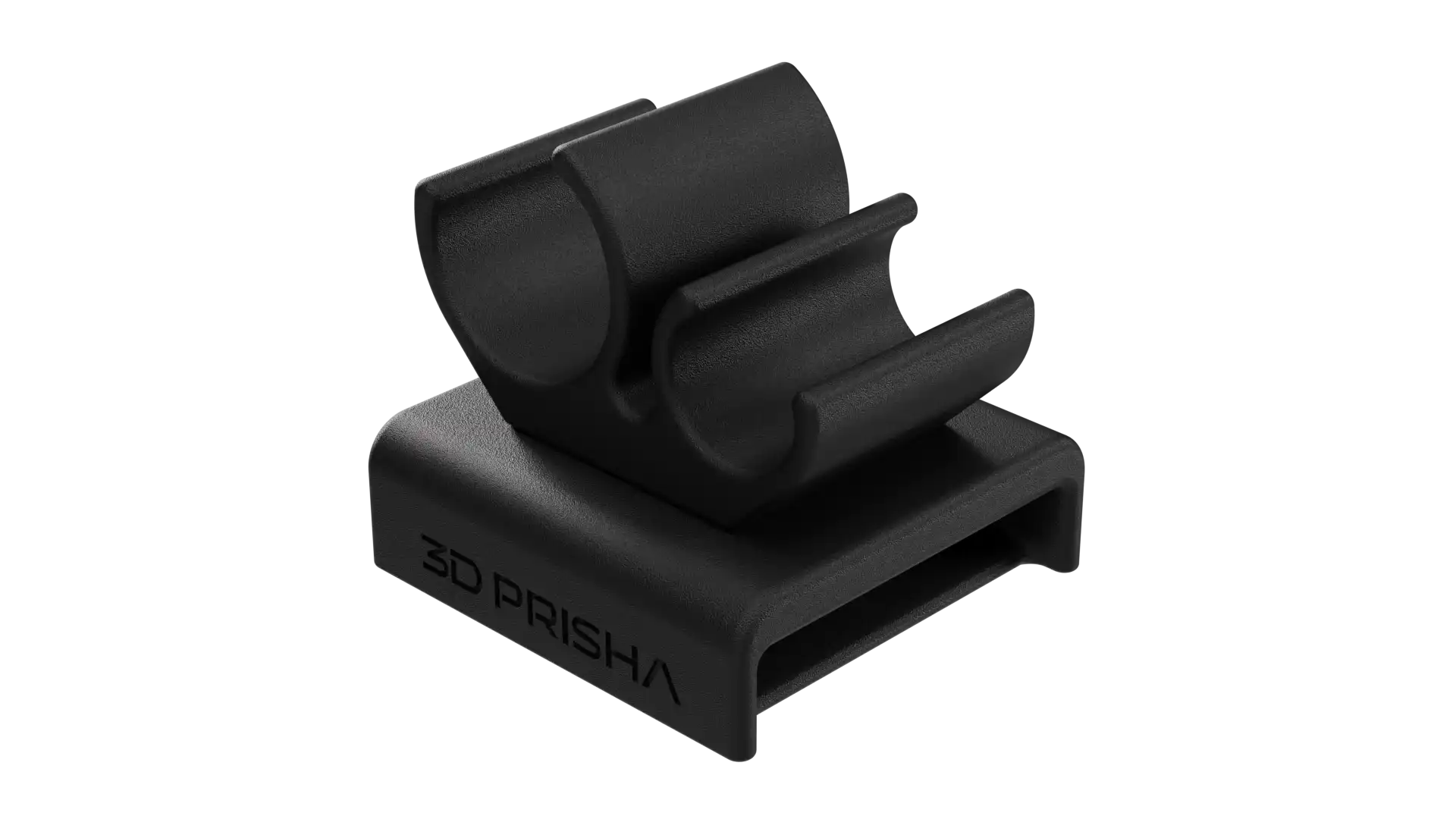

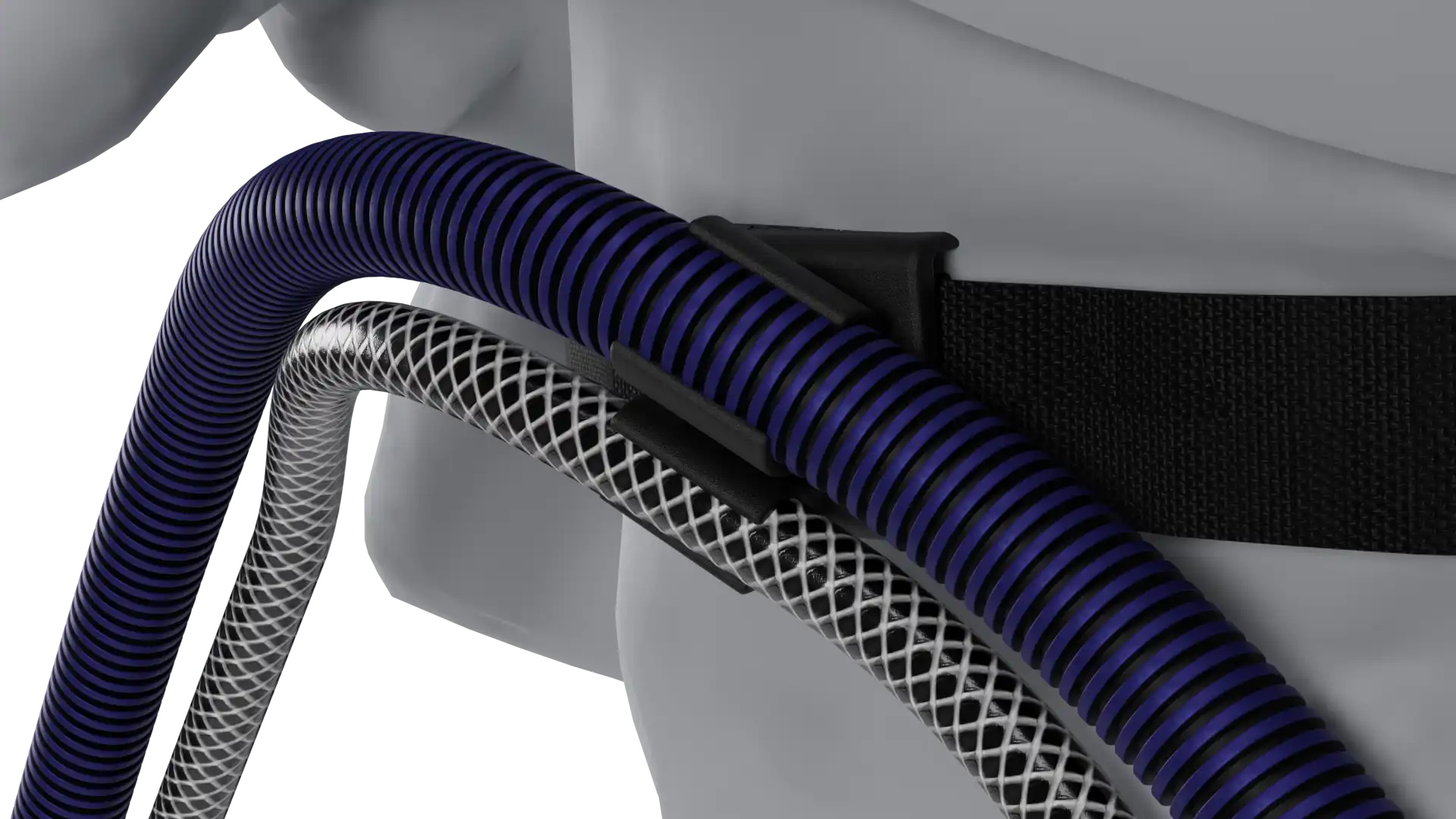

The hose holder can be attached to belts up to 40 mm high. The rotating mount fits profile hoses of size PH19 (24 mm outer diameter) and compressed air hoses with 15 mm outer diameter, providing flexible hose guidance for mobile use.

DIAMETER

PH19 - 24 mm | 15 mm

MOUNTING TYPE

Belt - 40 mm

Rotary Detent

N/A

SKU: 2099 Category: Hose Mounting

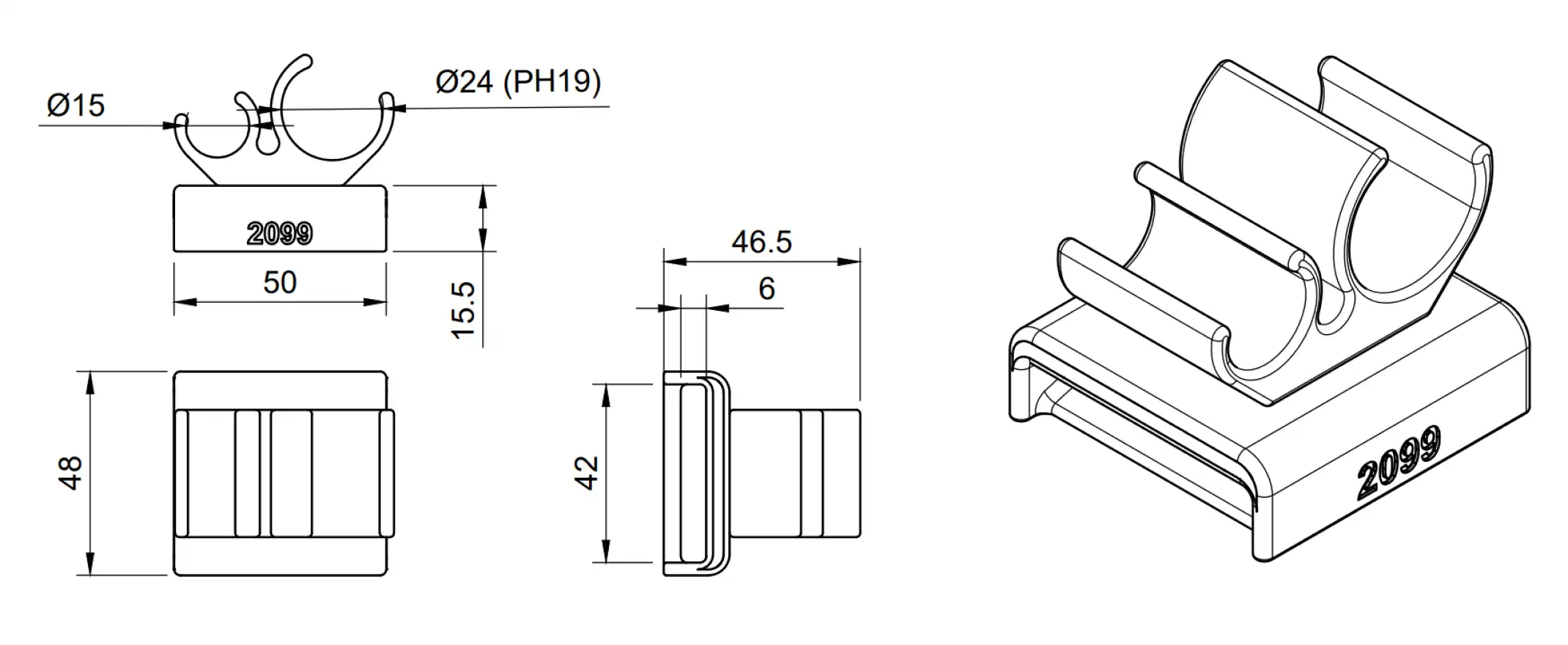

Dimensions

Category Items

Name	DIAMETER	MOUNTING TYPE	Rotary Detent
HM20 SKU: 2101	PH19 - 24 mm \| 15 mm	Strap - 32 mm
HM21 SKU: 2103	PH19 - 24 mm \| 15 mm	Chest Harness
HM18 SKU: 2097	PH19 - 24 mm \| 15 mm	CLAMP - FZ40
HM19 SKU: 2099	PH19 - 24 mm \| 15 mm	Belt - 40 mm
HM17 SKU: 2095	PH19 - 24 mm \| 15 mm	CLAMP - FZ40
HM16 SKU: 2089	PH19 - 24 mm	Chest Harness	not available
HM14 SKU: 2085	PH19 - 24 mm	Wrist Strap	not available
HM15 SKU: 2088	PH19 - 24 mm	Belt - 32 mm	not available
HM13 SKU: 2004	PH25 - 30 mm	Clamp - FZR50	not available
HM10 SKU: 1694	PH25 - 30 mm	Hose Clamp	not available
HM11 SKU: 1696	PH32 - 38 mm	Hose Clamp	not available
HM12 SKU: 1698	PH38 - 42 mm	Hose Clamp	not available
HM09 SKU: 1811	PH38 - 42 mm	Clamp - FZR50	available
HM08 SKU: 1724	PH38 - 42 mm	CLAMP - FZ40	available
HM06 SKU: 1720	PH32 - 38 mm	CLAMP - FZ40	available
HM07 SKU: 1722	PH38 - 42 mm	CLAMP - FZ40	not available
HM04 SKU: 1365	PH25 - 30 mm	CLAMP - FZ40	available
HM05 SKU: 1711	PH38 - 42 mm	CLAMP - FZ60	available
HM03 SKU: 1355	PH32 - 38 mm	CLAMP - FZ40	not available
HM01 SKU: 1274	PH25 - 30 mm	CLAMP - FZ40	not available
HM02 SKU: 1334	PH25 to PH25	Vacuum Cup	not available
